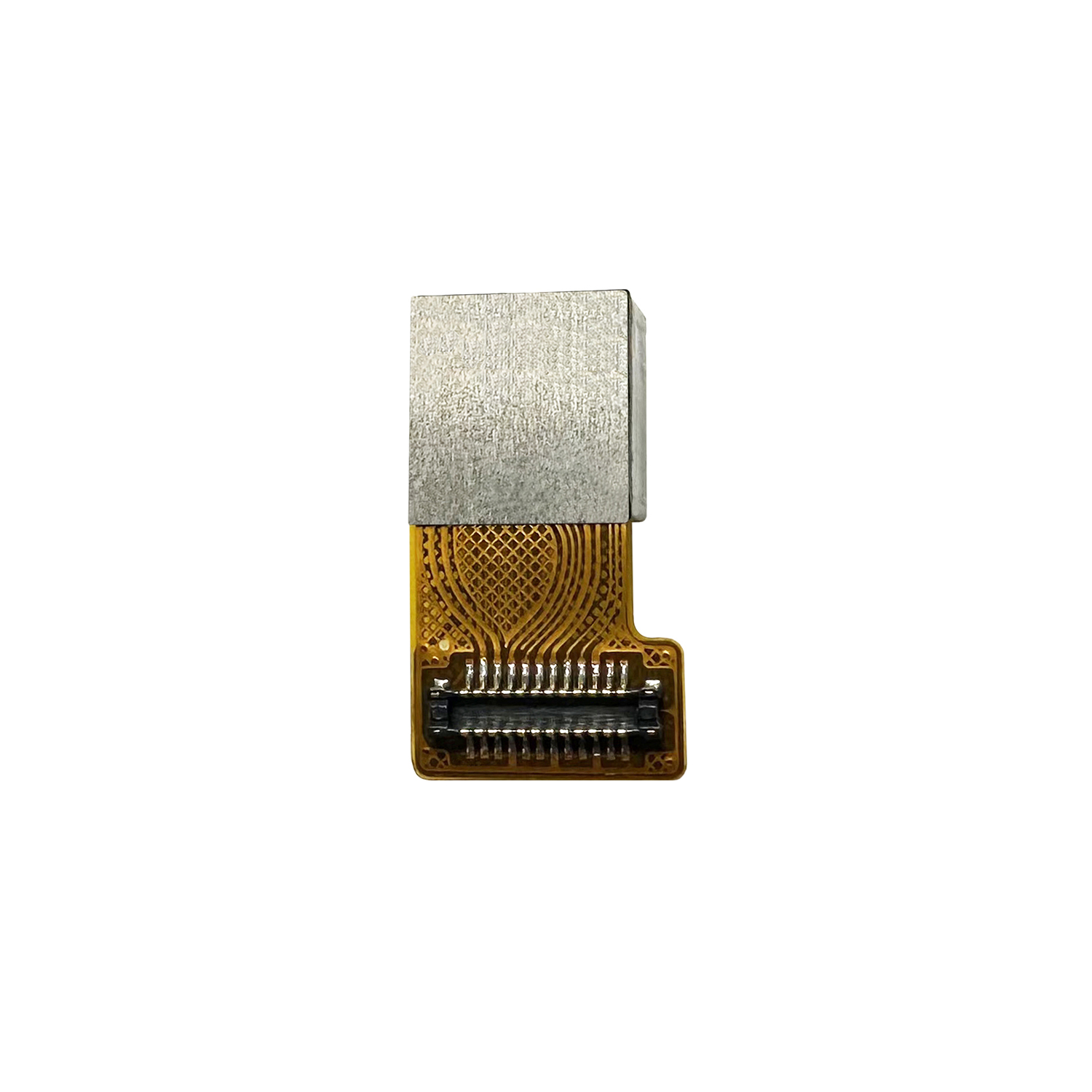

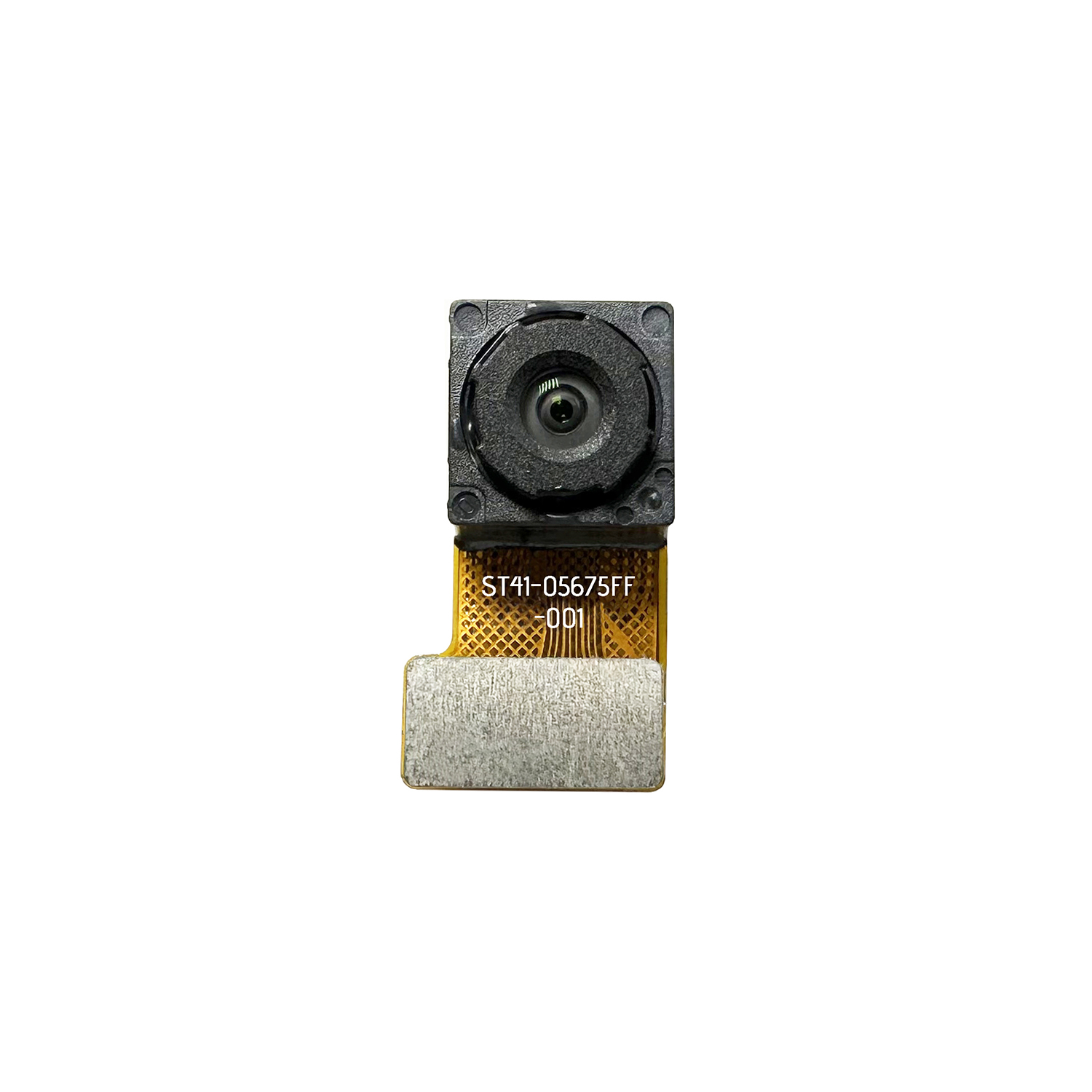

Supertek 5MP Fixed Focus High Performance MIPI Camera Module Color CMOS Sensor

Supertek 5MP MIPI camera module, powered by the OV5675 CMOS sensor, with image correction functionality and serial transmission capability using 2-lane MIPI. It incorporates programmable controls for frame rate, mirror ad flip, cropping, and windowing.

Raw 10 output format
2x binning support
Sensitivity: 530 mV/Lux-sec
Electronic rolling shutter and global reset

Download Datasheet

Product Information

Supertek 5MP MIPI camera module is based on OV5675 CMOS image sensor, the sensor has a 1/5″ optical format, which combined with the pixel size of 1.12 µm, results in the 5 Megapixel 2592H x 1944V resolution, it can capture full resolution 5 megapixel images in a native 4:3 aspect at 30 frames per second (fps), or 720P and 1080P video at 60fps.

Our off-the shelf dimensions are 6.5*6.5mm and 117 degree big FOV lens, any other required dimension can be customized.

Supertek 5MP Fixed Focus High Performance MIPI Camera Module Color CMOS Sensor

Image Sensor				1/5’’ OV05675-GA4A
Pixel Size				1.12 um
Resolution				5.0 Megapixel 2592H x 1944V
Interface				24pin MIPI
FOV				D=117°, H=96°, V=76.2°
Lens				EFL: 1.45mm, F/NO: 2.2mm
Focus Type				Fixed Focus
Objective Distance				0.208 to 6.054m
Shutter Type				Rolling Shutter
Module Size				6.5 x 6.5 x 4.42mm
Operating Temperature				-30º ~ +85º
PIN DESCRIPTION
NO.	Name	NO.	Name		NO.	Name	NO.	Name
1	AF-VCC (NC)	13	NC
2	DVDD 1.2V	14	NC
3	DOVDD 1.8V	15	DGND
4	MCLK	16	MDN1
5	RESET	17	MDP1
6	AVDD 2.8V	18	DGND
7	AGND	19	MDP0
8	S10-C	20	MDNO
9	S10-D	21	DGND
10	DGND	22	MCP
11	NC	23	MCN
12	NC	24	AF-GND (NC)
