32MP High Resolution Camera Module - OV32A1Q -GA5A

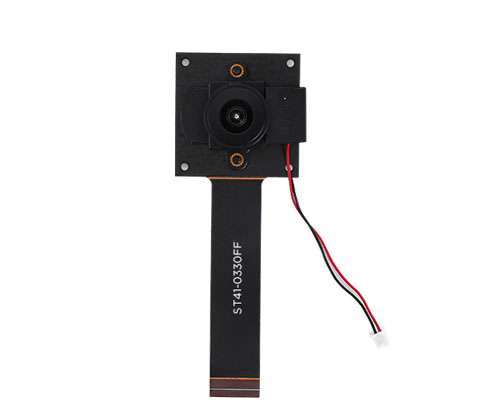

Supertek OV32A1Q-GA5A is a high resolution camera module 32mp MIPI camera module with a MIPI interface and an OV32A1Q -GA5A image sensor.
  • 6528 x 4896 resolution with high quality image sensor
  • MIPI interface
  • Electronic Rolling Shutter
  • Fully customizable

Product Information

This Supertek camera module is based on an OV32A1Q-GA5A CMOS image sensor and a 32-megapixel camera chip. It consists of 6528 x 4896 effective pixels with 1/2.75 inch optical format. The sensor is capable of delivering 24 fps at full resolution allowing burst photography at full 32-megapixel resolution With a complete 31.96-megapixel image array. The camera module combines with the pixel size of 0.8 µm x 0.8 µm. This is a rolling shutter sensor, which captures an entire column (or row) simultaneously, and compiles the image by scanning across (or down).

Applications

mobile smartphones, security cameras, smart home / IoT devices

32MP Camera Module OV32A1Q - Specification

Image Sensor1/2.75’’ OV32A1Q-GA5A
Pixel Size0.8μm(H) x 0.8μm(V)
Resolution32 Megapixel High Resolution 6528H x 4896V
Interface30pin MIPI
FOVD=76.4°, H=64.5°, V=50.7°
LensEFL: 3.95mm F/NO:1.8mm
Focus typeAuto focus
Objective Distance10cm to infinity
Shutter typeElectronic Rolling Shutter
Operating Temperature-20℃~+70℃
