USB2.0 Camera Module

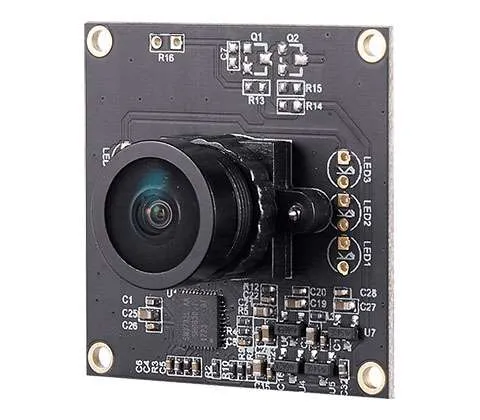

OV5640 Camera Module
SupertekOV5640 camera module is off-the-shelf size 35*35 mm and equipped with a 5MP camera sensor, which is a 1/5 Inch optical format, with a pixel size of 1.75um(H) x 1.75um(V).
- 5.0 Megapixel 2592H x 1944V
- USB 2.0 compliant, plug and play device
- OnmiVision OV5640 camera sensor
- PCB size: 35*35mm
- 5 pin 1.0mm socket
- Fully customizable
Product Information
Supertek OV5640 Camera Module
The Supertek 5MP USB2.0 camera module is based on Omnivision OV5640 color image sensor which is a low voltage, high-performance, 1/4-inch 5 megapixel CMOS image sensor that provides the full functionality of a single chip 5 megapixel (2592×1944) camera using OmniBSI™ technology.The sensor has an image array capable of operating at up to 15 frames per second (fps) in 5 megapixel resolution with complete user control over image quality, formatting and output data transfer. All required image processing functions, including exposure control, gamma, white balance, color saturation, hue control, defective pixel canceling, noise canceling, etc., are programmable through the SCCB interface or embedded microcontroller.
This sensor also includes a compression engine for increased processing power. In addition, Our image sensors use proprietary sensor technology to improve image quality by reducing or eliminating common lighting/electrical sources of image contamination, such as fixed pattern noise, smearing, etc., to produce a clean, fully stable, color image.
Application:
Cellular Phones
Toys
PC Multimedia
Digital Still Cameras
OV5640 USB Camera Module- Specification
| Image Sensor | 1/4’’ CMOS OV5640 | |
| Pixel Size | 1.4um(H) x 1.4um(V) | |
| Resolution | 5.0 Megapixel 2592H x 1944V | |
| Output Format | MJPEG, YUV2 | |
| FOV | 69 degree | |
| Lens | FEL: 1.52mm F/NO: 2.0mm | |
| Focus type | Auto Focus | |
| Shutter type | Electronic Rolling shutter | |
| Audio Input | Not Support | |
| Illumination | 0.1 Lux | |
| Night Vision | Not support | |
| Protocol & Connection | Plug & Play, UVC compliant | |
| Output & Power Supply | USB2.0 | |
| Power Socket | 5P 1.0mm Socket | |
| Supported OS | Win XP/Vista/Win7/Win8/Win10 MAC OS X EI Capitan 10.11.4, Linux /Android, Wince with UVC | |
| Controllable Features | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Contrast, Exposure | |
| Cable length | Default 1m USB cable | |
| Module Size | 60*9 mm | |
| Operating Temperature | -20º ~ +70º | |
| Storage Temperature | -40º ~ +85º | |
| Humidity | 80 ~85% | |
| FORMAT | RESOLUTION | FRAME RATE |
| MJPEG | 2952×1944(5MP) | 15fps |
| 2048X1356(3MP) | 15fps | |
| 1600X1200(UXGA) | 15fps | |
| 1920X1080(1080P) | 30fps | |
| 1280X720(720P) | 30fps | |
| 640X480(VGA) | 30fps | |
| 320X240 | 30fps | |
| YUY2 | 2952X1944(5MP) | 2fps |
| 2048X1536(3MP) | 2fps | |
| 1600X1200(UXGA) | 5fps | |
| 1920X1080 (1080P) | 5fps | |
| 1280X720 (720P) | 10fps | |
| 640X480 (VGA) | 30fps | |
| 320X240 | 30fp | |
