USB2.0 camera module

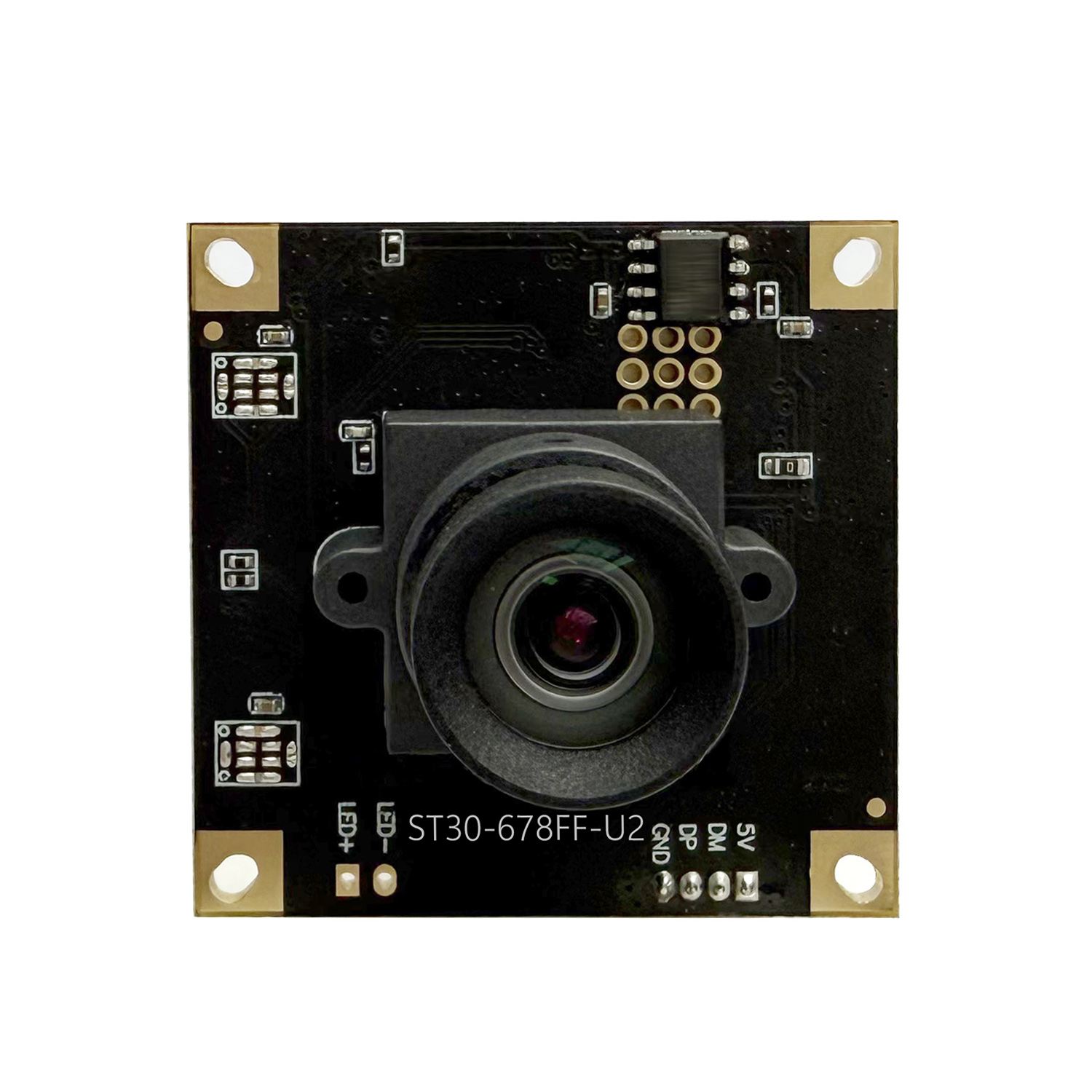

IMX291 Camera Module

Supertek 2MP IMX291 Camera Module uses a Sony IMX291 CMOS camera sensor, which is a low light sensor, providing a clear image capture ability in poor lighting conditions, The camera sensor has a 1/2.8 Inch optical format, which a pixel size of 2.9um(H) x 2.9um(V), and come with a fixed focus lens.

  • 2.0 Megapixel l 1920H x 1080V @MJPGE 30fps
  • USB 2.0 compliant, plug and play device
  • Sony IMX291 camera sensor
  • Electronic Rolling Shutter
  • Pinout 4P 2.0mm socket
  • Fully customizable

Product Information

Supertek STARVIS Camera Module

Supertek STARVIS camera Module ST-IMX291 comes with an IMX291 high-quality 2MP CMOS image sensor from Sony. The sensor has a 1/2.8’’ optical format and is combined with a fixed-focus lens. The camera module is full HD 1080P resolution with SONY IMX291 CMOS sensor, a new 2.9 µm-square unit pixel had been developed that combines a back-illuminated structure with technology for improving near infrared sensitivity to further enhance picture quality at low illumination while at the same time realizing full HD cameras for industrial applications. Meanwhile, the camera module can achieve 30fps at full HD resolution. IMX291 is a high-sensitivity sensor that performance well in low-light conditions. This H.264 camera module is equipped with USB 2.0 interface, MJPGE running 1080P@30fps, 720P@30fps.

It is a plug-and-play camera UVC-compliant camera module for Windows and Linux, it is a driver-free camera as well. Our off-the-shelf dimension is 38*38mm, any other required dimension can be customized.

STARVIS IMX291 Camera Module - Specification

Image Sensor1/2.8’’ CMOS IMX291
Pixel Size2.9um(H) x 2.9um(V)
Resolution2.0 Megapixel 1920H x 1080V
Output FormatMJPEG, YUV2
FOV80 degree, more view angle for option by requirement
LensEFL: 4.2MM F/NO: 2.4MM
Focus typeFF/ MF
Shutter typeElectronic Rolling shutter
Audio InputNo support
Protocol & ConnectionPlug & Play, UVC compliant
Output & Power SupplyUSB2.0
Power Socket4P 2.0mm socket
Supported OSWinXP/Vista/Windows7(32bit/64bit)/Windows 8/Windows 10/MAC OSX EI captain 10.11.4 and Linux /Android
Controllable FeaturesBrightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Contrast, Exposure
Cable lengthDefault 1m USB cable
Module Size38*38 mm
Operating Temperature-20º ~ +70º
Storage Temperature-40º ~ +85º
Humidity80 ~85%
FORMATRESOLUTIONFRAME RATE
MJPEG1920×1080(1080P)30fps
1280X720 (720P)30fps
640X480 (VGA)30fps
     YUY21920×1080 (1080P)5fps
1280X720 (720P)10fps
640X480 (VGA)30fps
