Supertek 13MP Auto Focus High Performance USB2.0 Camera Module Color CMOS Sensor
Supertek 13MP USB2.0 camera module, embedded by the OV13B10 CMOS sensor, captures 4160×3120 resolution at 15fps, phase detection auto focus ensures rapid and precise focusing, capturing vivid and detailed images with exceptional clarity.
- 13 Megapixel 4160H x 3120V
- 5pin 1.0mm socket
- Electronic Rolling shutter
- Phase Detection Auto Focus (PDAF)
- Fully customizable
Product Information
Supertek 13MP USB2.0 camera module is based on OV13B10 CMOS image sensor with Supply Voltage 5V, Frame Rate 30 fps at 4K resolution. The sensor has a 1/3.06″ optical format, which combined with the pixel size of 1.12 µm, results in the 13 Megapixel 4160H x 3120V resolution. It features phase detection auto focus and excellent low light image performance, which can be used for chanllenging situation. It is a UVC compliant, plug and play camera module and work with Windows, Linux and Mac OS operation systems, which is suitable for Smart phones and feature phones, document scanner, photo booth etc.

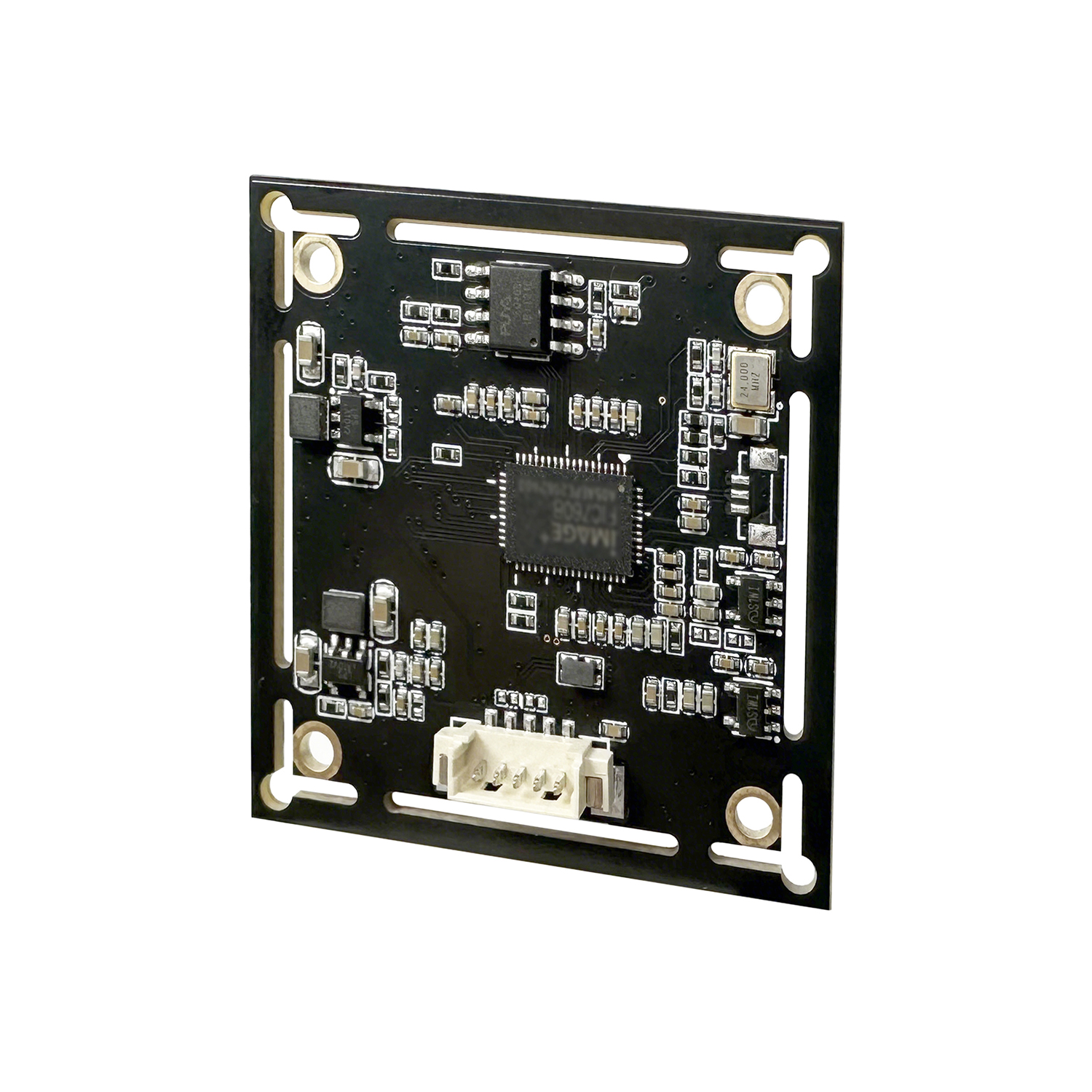

Our off-the shelf dimensions are 38*38, any other required dimension can be customized.
Supertek 13MP Auto Focus High Performance USB2.0 Camera Module Color CMOS Sensor
| Image Sensor | 1/3.06’’ OV13B10 | ||
| Pixel Size | 1.12 µm | ||
| Resolution | 13.0 Megapixel 4160H x 3120V | ||
| Output Format | MJPEG, YUV2 | ||
| FOV | 80° | ||
| Color | Color | ||
| Focus Type | PDAF | ||
| Shutter Type | Electronic Rolling Shutter | ||
| Protocol & Connection | Plug & Play, UVC compliant | ||
| Output & Power Supply | USB2.0 | ||
| Power Socket | 5-pin 1.00mm socket | ||
| Supported OS | Windows, Android, Linux, Wince, macOS | ||
| Controllable Features | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure | ||
| Cable Length | Default 1m USB cable | ||
| Module Size | 38mm x 38mm x 10.1mm | ||
| Operating Temperature | -10º ~ +60º | ||
| Storage Temperature | -20º ~ +85º | ||
| Humidity | 80 ~ 85% | ||
| FORMAT | RESOLUTION | FRAME RATE | |
| USB 2.0 | USB 3.0 | ||
| MJPEG | 4160 x 3120 | 15fps | – |
| 4000 x 3000 | 15fps | – | |
| 3840 x 2160 | 30fps | – | |
| 2592 x 1944 | 5fps | – | |
| 1920 x 1080 | 5fps | – | |
| 1280 x 720 | 30fps | – | |
| YUY2 | 640 x 480 | 30fps | – |
