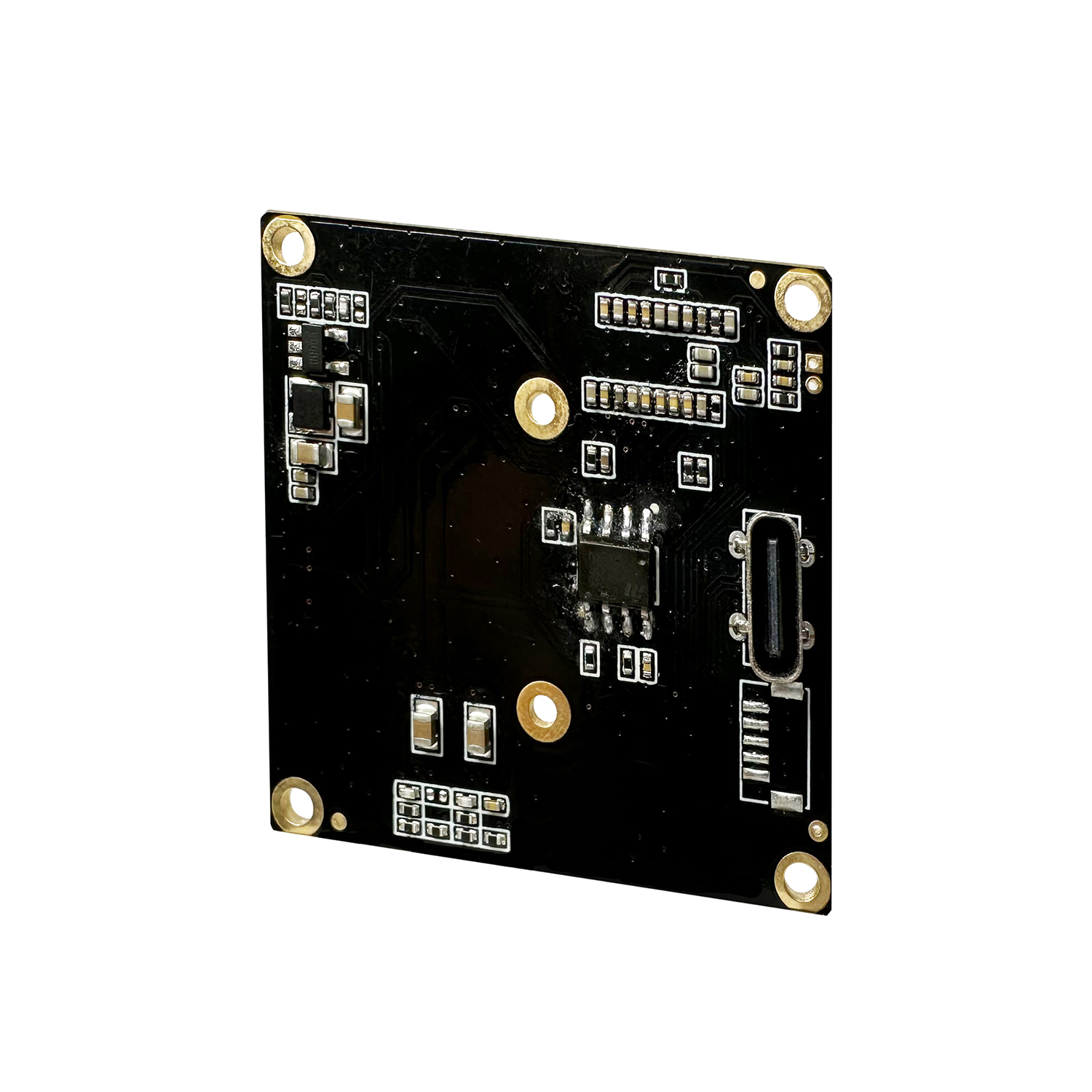

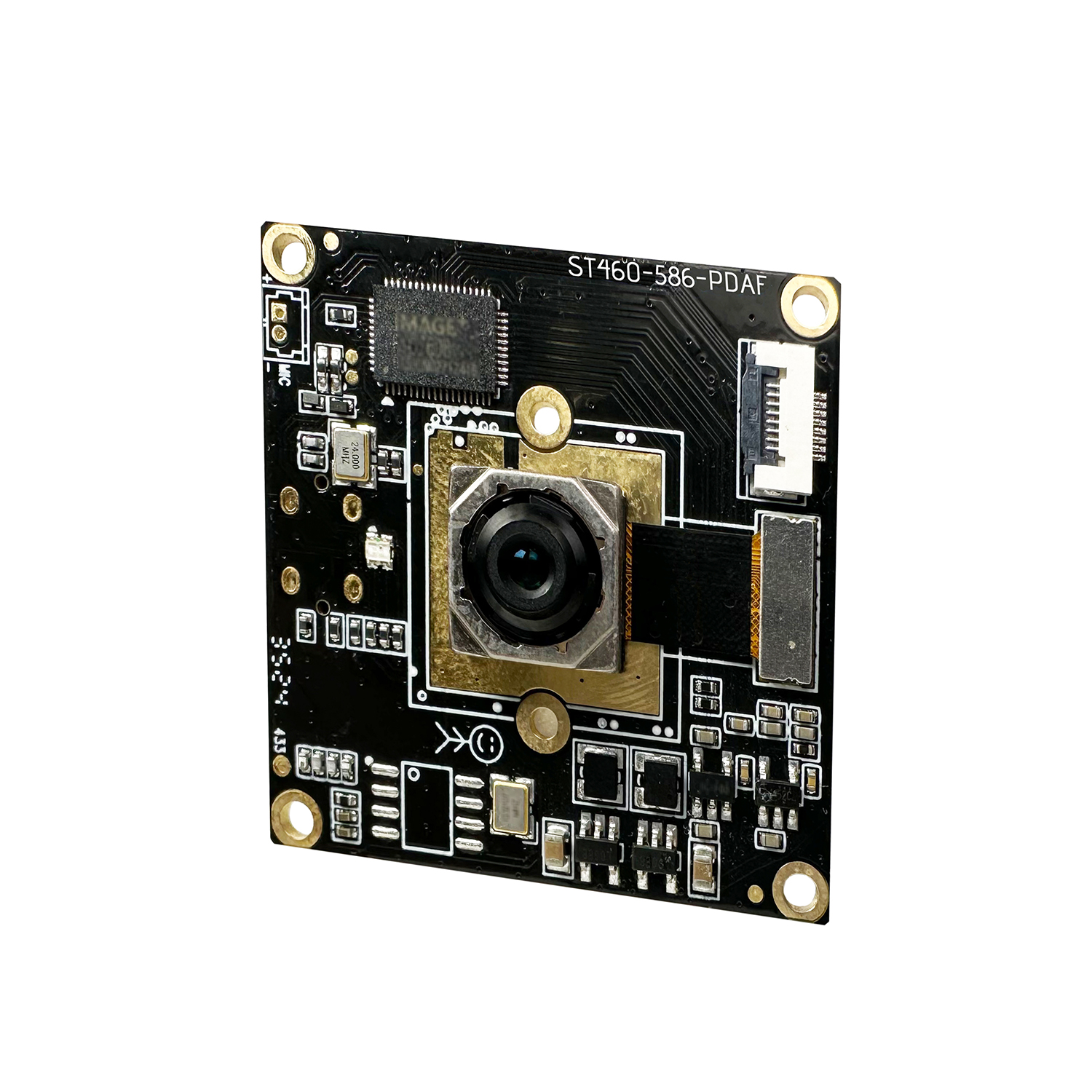

Supertek 12MP Auto Focus High Performance USB2.0 Camera Module Color CMOS Sensor
Supertek 16MP USB2.0 camera module, embedded by the IMX586 CMOS sensor, captures 4000×3000 resolution at 15fps, phase detection auto focus ensures rapid and precise focusing, capturing vivid and detailed images with exceptional clarity.
- 12 Megapixel 4000H x 3000V
- Type-C socket
- Electronic Rolling shutter
- Phase Detection Auto Focus (PDAF)
- Fully customizable
Product Information
Supertek 12MP USB2.0 camera module is based on IMX586 CMOS image sensor with Supply Voltage 5V, Frame Rate 30 fps at 4K resolution. The sensor has a 1/2″ optical format, which combined with high sensitivity and low noise image through the backside illuminated imaging pixel structure. It is a UVC compliant, plug and play camera module and work with Window, Linux and Mac OS operation systems, which is suitable for Surveillance cameras, FA cameras, consumer products.
Our off-the shelf dimensions are 38*38, any other required dimension can be customized.
Supertek 12MP Auto Focus High Performance USB2.0 Camera Module Color CMOS Sensor
| Image Sensor | 1/2.0’’ IMX586 | ||
| Pixel Size | 0.8 µm | ||
| Resolution | 12 Megapixel 4000H x 3000V | ||
| Output Format | MJPEG, YUV2 | ||
| Object Distance | 10mm – ∞ | ||
| Focus Type | PDAF | ||
| Shutter Type | Electronic Rolling Shutter | ||
| Dynamic Range | 95 dB | ||
| Protocol & Connection | Plug & Play, UVC compliant | ||
| Output & Power Supply | USB2.0 | ||
| Power Socket | Type-C | ||
| Supported OS | Windows, macOS, Linux, Android | ||
| Controllable Features | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure | ||
| Cable Length | Default 1m USB cable | ||
| Module Size | 38mm x 38mm | ||
| Operating Temperature | -30º ~ +70º | ||
| Storage Temperature | -20º ~ +75º | ||
| FORMAT | RESOLUTION | FRAME RATE | |
| USB 2.0 | USB 3.0 | ||
| MJPEG | 4000 x 3000 | 10fps | – |
| 3840 x 2160 | 30fps | – | |
| 2592 x 1944 | 10fps | – | |
| 2048 x 1536 | 10fps | – | |
| 1920 x 1080 | 30fps | – | |
| 1280 x 720 | 30fps | – | |
| 800 x 600 | 10fps | – | |
| 640 x 480 | 10fps | – | |
| YUY2 | 1920 x 1080 | 5fps | – |
| 1600 x 1200 | 5fps | – | |
| 1280 x 720 | 10fps | – | |
| 800 x 600 | 10fps | – | |
| 640 x 480 | 10fps | – | |
