USB2.0 camera module

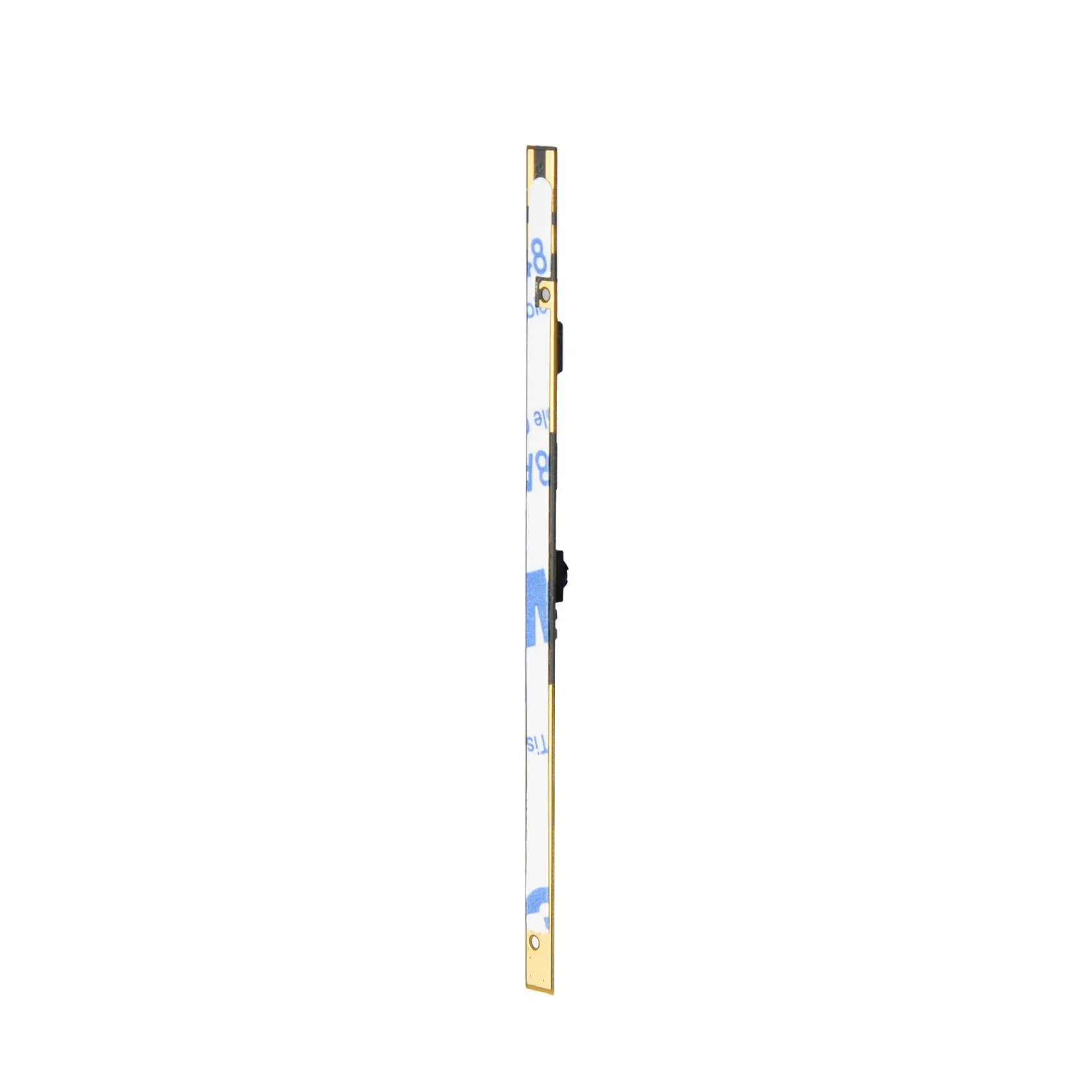

GC1009 Laptop Camera Module Mini Cameras

The Supertek 1.0MP USB2.0 camera module uses the GC1009 CMOS image sensor with a 5V supply voltage. It has a frame rate of 30fps at 1280×720 resolution. The sensor has a 1/9″ optical format and pixel size of 1.4µm, resulting in 1.0MP resolution. It is cost-effective, stable, and has good image quality. Mic is optional based on your application needs.

  • 1.0 Megapixel 1280H x 720V
  • 10pin 0.35mm socket
  • Electronic Rolling shutter
  • Fixed focus
  • Fully customizable

Product Information

Supertek 1.0MP USB2.0 camera module is based on GC1009 CMOS image sensor with Supply Voltage 5 V, Frame Rate 30 fps at 1280*720 resolution. The sensor has a 1/9″ optical format, which combined with the pixel size of 1.4 µm, results in the 1.0 Megapixel 1280H x 720V resolution. It is a very cost-effective and stable chip with good image quality, and Mic is optional according to your application needs.

It is a UVC compliant, plug and play camera module and work with Windows, Linux and Mac OS operation systems, which is suitable for the applications such as MID, Notebook, IoT, Digital Camera product. Our off-the shelf dimensions are 74.6*3.5m, any other required dimension can be customized.

GC1009 Laptop Camera Module Mini Cameras Specification

Image Sensor

1/9’’ GC1009

Pixel Size

1.4 um

Resolution

1.0 Megapixel 1280H x 720V

Output Format

MJPEG, YUV2

FOV

78 degree

Color

color

Focus type

Fixed Focus

Shutter type

Electronic Rolling shutter

Audio Input

Support

Protocol & Connection

Plug & Play, UVC compliant

Output & Power Supply

USB2.0

Power Socket

10pin 0.35mm socket

Supported OS

Windows7/8/8.1/10/11 OS

Linux /Android

Controllable Features

Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Contrast, Exposure

Cable length

Default 1m USB cable

Module Size

74.6mm*3.5mm

Operating Temperature

-20º ~+70º

Storage Temperature

-40º ~+85º

Humidity

80 ~85%

FORMAT

RESOLUTION

FRAME RATE

USB2.0

MJPEG

1280 x 720 (720P)

15-30fps

640 x 480 (VGA)

15-30fps

320 x 240 (QVGA)

15-30fps

YUY2

1280 x 720 (720P)

5-10fps

640 x 480 (VGA)

15-25fps

320 x 240 (QVGA)

15-30fps
