USB2.0 camera module

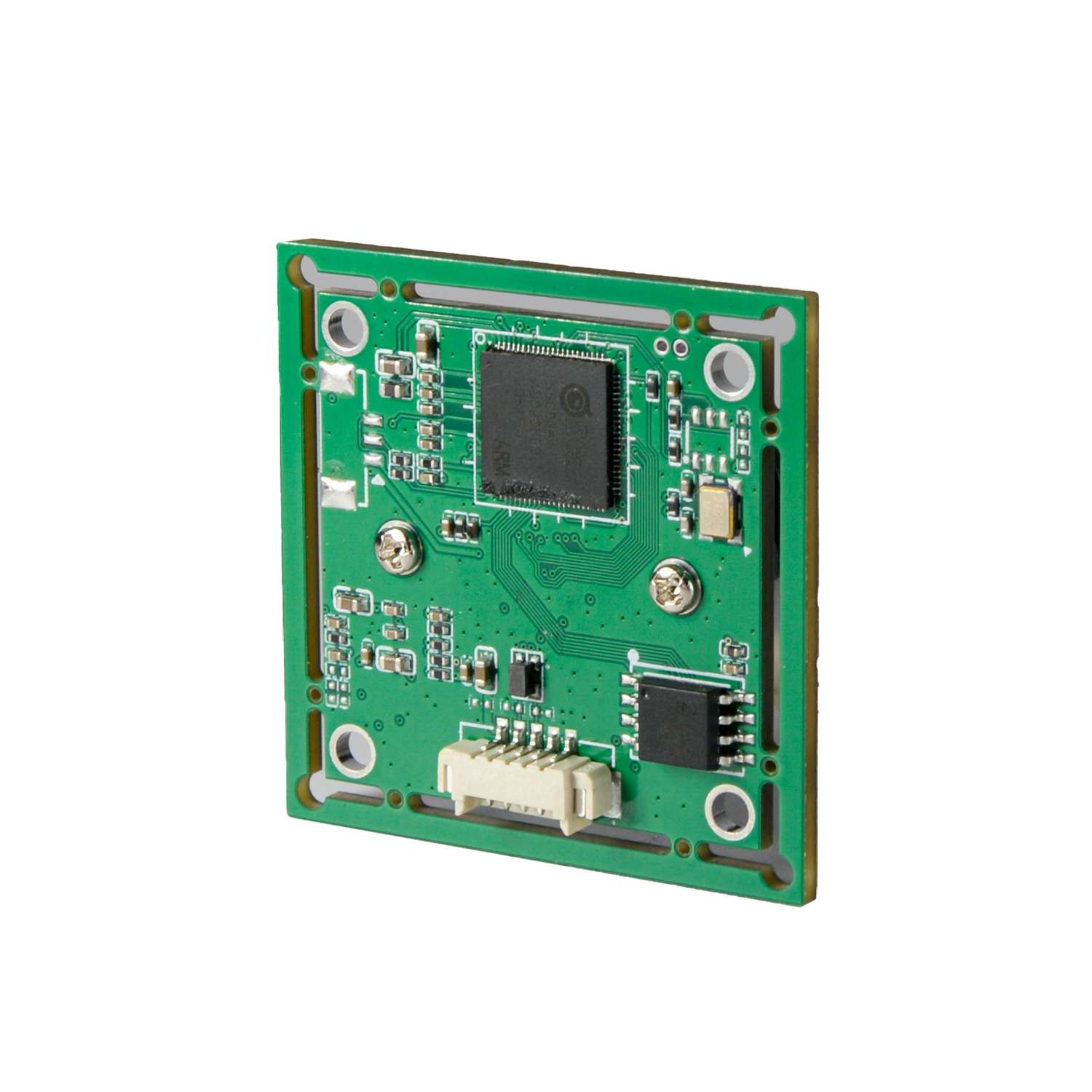

2.0MP Fixed Focus High Performance - BF3238CS camera module

Supertek’s 2.0MP USB2.0 camera module features the BYD BF3238CS CMOS image sensor, offering a 1920×1080 resolution at 30 fps. With a 1/3.0″ optical format and 2.7 µm pixel size, it achieves 2.0 Megapixel clarity. Operating at up to 30 frames per second with a 74.25MHz master clock input, the module incorporates integrated noise-canceling CDS circuits for high-performance imaging.

  • 2.0 Megapixel 1920H x 1080V
  • 5pin 1.25mm socket
  • Electronic Rolling shutter
  • Fixed Focus/Manual Focus
  • Fully customizable

Product Information

Supertek 2.0MP USB2.0 camera module is based on BYD BF3238CS CMOS image sensor with Supply Voltage 5V, Frame Rate 30 fps at 1920*1080 resolution. The sensor has a 1/3.0″ optical format, which combined with the pixel size of 2.7 µm, results in the 2.0 Megapixel 1920H x 1080V resolution. It has advantage of high performance, which is capable of operating at up to 30 frames per second at 74.25MHz master clock input and has integrated noise canceling CDS circuits.

It is a UVC compliant, plug and play camera module and work with Window, Linux and Mac OS operation systems, which is suitable for the security systems, Automotive, Notebook PC cameras, IP cameras, Digital still cameras and camcorders, Video telephony and conferencing equipment, Industrial and environmental systems.

Our off-the shelf dimensions are 38*38 or 32*32mm, any other required dimension can be customized.

2.0MP Fixed Focus High Performance - BF3238CS camera module Specification

Image Sensor

1/3.0’’ BF3238CS

Pixel Size

2.7 um

Resolution

2.0 Megapixel 1920H x 1080V

Output Format

MJPEG, YUV2, H.264, H.265

FOV

90 degree

Color

color

Focus type

Fixed Focus/Manual Focus

Shutter type

Electronic Rolling shutter

Audio Input

Support

Protocol & Connection

Plug & Play, UVC compliant

Output & Power Supply

USB2.0

Power Socket

5pin 1.25mm socket



Supported OS

Windows7/8/8.1/10/11 OS

Linux /Android

Controllable Features

Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Contrast, Exposure

Cable length

Default 1m USB cable

Module Size

38mm*38mm

Operating Temperature

-2°C ~+70°C

Storage Temperature

-40°C ~+85°C

Humidity

80 ~85%

FORMAT



RESOLUTION



FRAME RATE

USB2.0

USB3.0

MJPEG



1920 x 1080 (1080P)

30fps



1280 x 720 (720P)

30fps



640 x 480 (VGA)

30fps



YUY2

1920 x 1080 (1080P)

5fps



1280 x 720 (720P)

5fps



640 x 480 (VGA)

30fps



H.264

1920 x 1080 (1080P)

30fps



1280 x 720 (720P)

30fps



640 x 480 (VGA)

30fps



H.265

1920 x 1080 (1080P)

30fps



1280 x 720 (720P)

30fps



640 x 480 (VGA)

30fps
