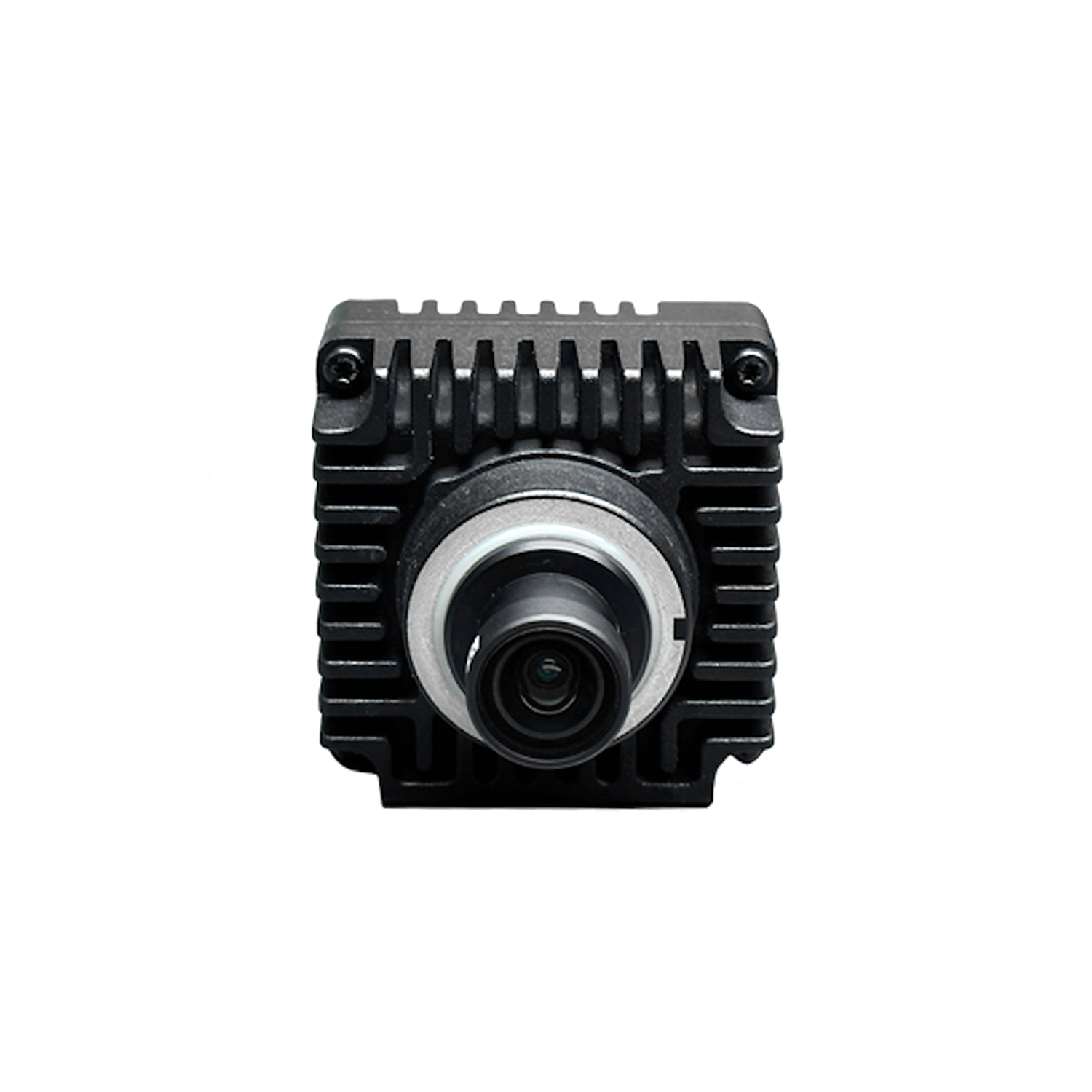

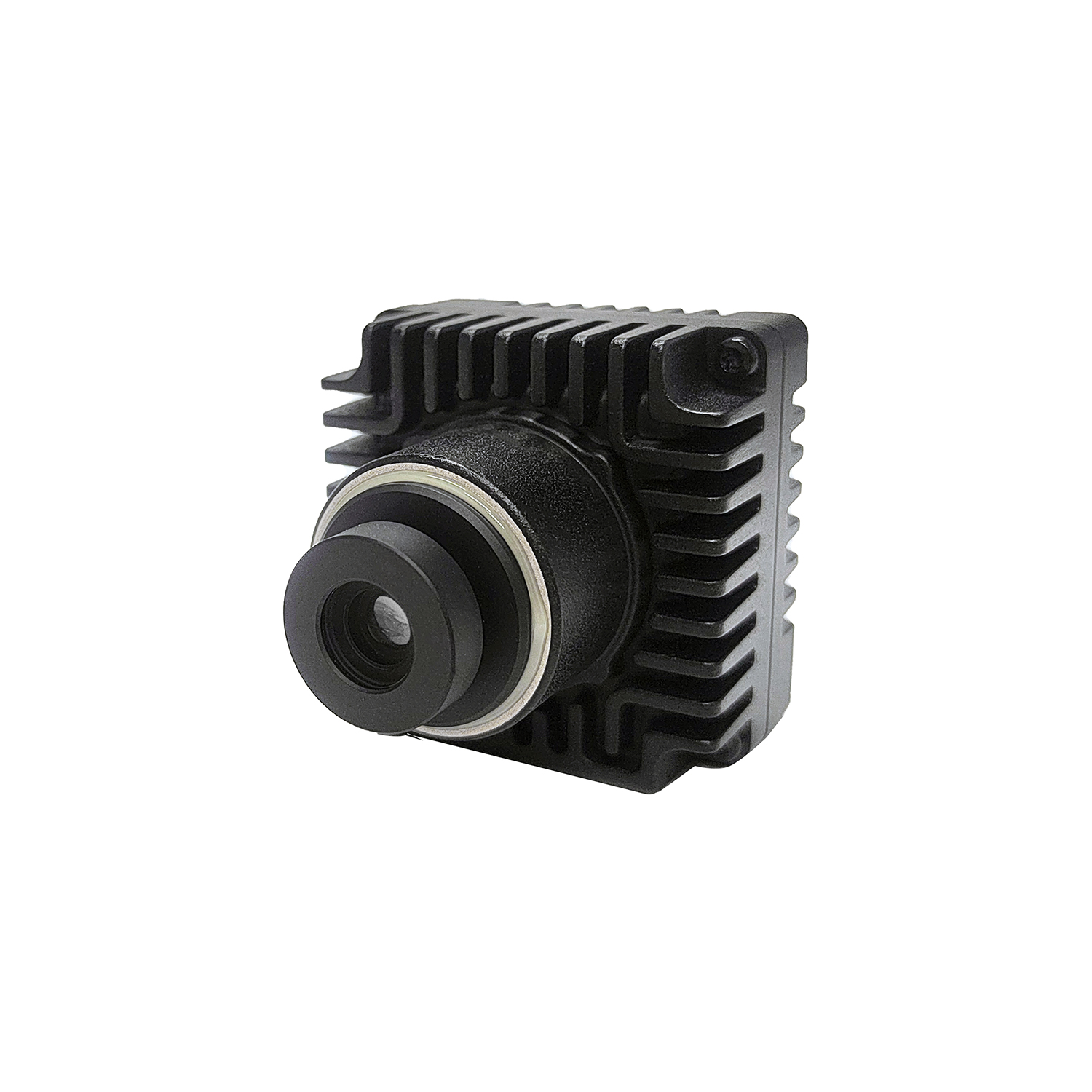

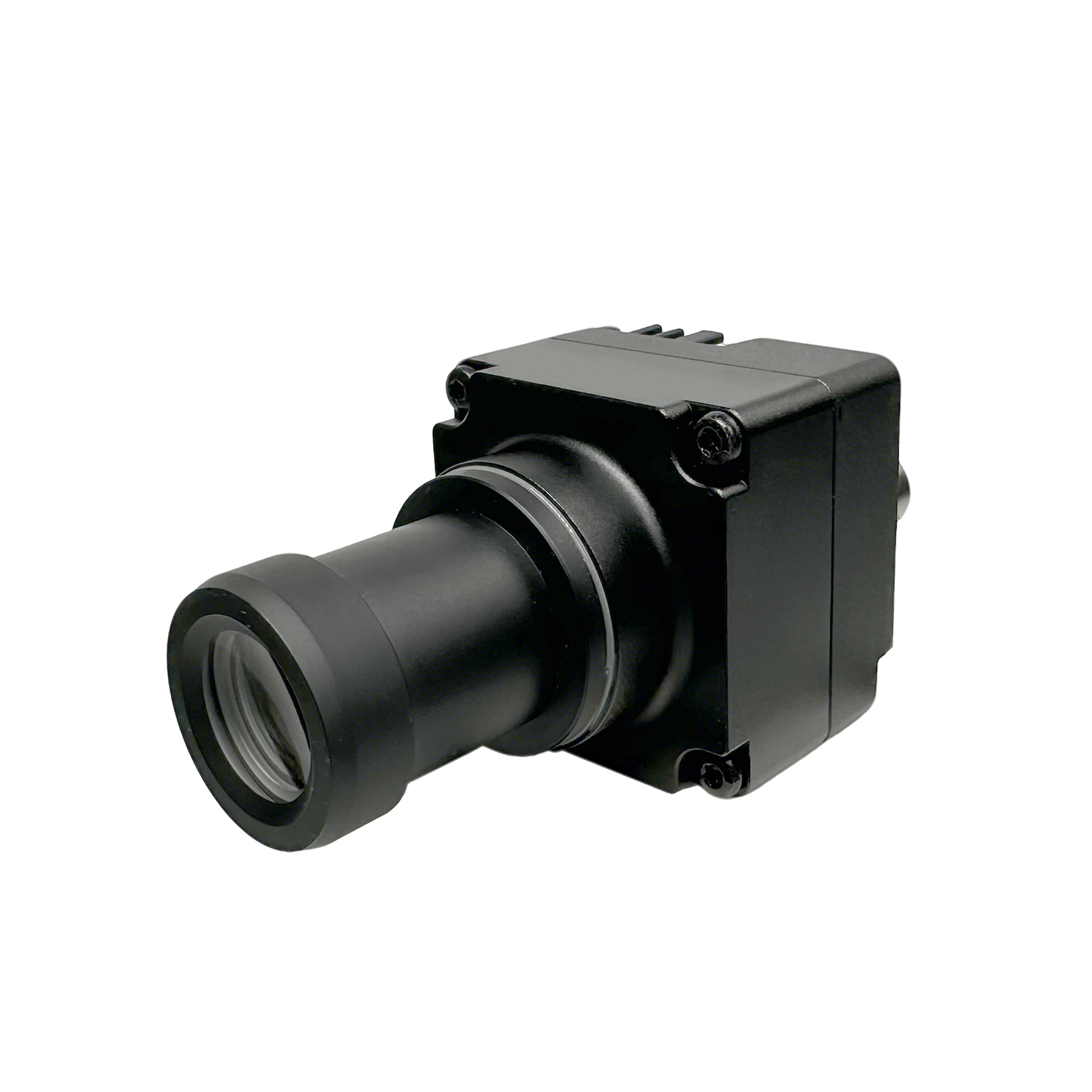

Supertek 8MP Fixed Focus GMSL2 Camera
Supertek 8MP GMSL2 camera is designed by ON Semiconductor CMOS image sensor OX08B40, image processor GW5300 and Maxim GMSL serializer MAX9295A. It meets automotive-grade performance and has high-quality image performance after professional image debugging; and equipped with AA automotive-grade lens, the camera can reach IP67 protection level.
- Uncompressed YUV422 format
- Mount IP67 compliant lens focused and glued in house
- Multi−Camera synchronization Support
- Support different focal length lens
Product Information
Supertek 8MP GMSL2 camera is based on Onsemi OX08B40 RGGB image sensor, the sensor has a 1/1.73″ optical format, which combined with the pixel size of 2.1 µm, results in 30fps at 3840H x 2160V resolution, the camera can be used in the application of Automotive, ADAS, Autonomous Driving, Robots, and situation required for High Dynamic Range Imaging.
Our off-the shelf dimension is 40*40mm, with different lens options to meet your requirement.
Supertek 8MP Fixed Focus GMSL2 Camera
| Sensor | OmniVision 8.3MP OX08B40 RGGB | |||||||
| ISP | GW5300 | |||||||
| Image Size | 1/1.73 inch CMOS | |||||||
| Output Pixels | 3840H*2160V | |||||||
| Pixel Size | 2.1um * 2.1um | |||||||
| Frame Rate | 3840*2160@30fps | |||||||
| HDR Support | Yes | |||||||
| Output Data | YUV422@8bit | |||||||
| Serializer | MAXIM MAX9295A | |||||||
| Camera Interface | GMSL2 | |||||||
| Output & Power Supply | USB2.0 | |||||||
| Power Supply | 9-16V POC | |||||||
| Current | <400mA@12VDC | |||||||
| Connector | Amphenol Fakra (Z Code) | |||||||
| Operating Temp. Range | -40~+85℃ | |||||||
| Waterproof | Refer to the lens | |||||||
| Dimension | W: 40mm, L: 40mm, H: 23mm | |||||||
| Weight | <80g | |||||||
| Model and Lens | ||||||||
| Model | HFOV | VFOV | F.NO | EFL | Waterproof | Max Optical Distortion | Process Specification | |
| STC-OX08BC-5300-GMSL2-H30S1 | 30° | 16° | 1.6 | 15.3mm | IP67 | -2.7% | M16 | |
| STC-OX08BC-5300-GMSL2-H30S1A | 30° | 16° | 1.6 | 15.3mm | IP67 | -2.7% | AA | |
| STC-OX08BC-5300-GMSL2-H60S | 60° | 33° | 1.8 | 7.87mm | IP67 | -14% | M12 | |
| STC-OX08BC-5300-GMSL2-H60SA | 196° | 33° | 1.8 | 7.87mm | IP67 | -14% | AA | |
| STC-OX08BC-5300-GMSL2-H120Y | 60° | 66° | 1.6 | 4.01mm | IP67 | -57.9% | M16 | |
| STC-OX08BC-5300-GMSL2-H120YA | 120° | 66° | 1.6 | 4.01mm | IP67 | -65.21% | AA | |
| STC-OX08BC-5300-GMSL2-H120S1A | 120° | 55° | 1.8 | 5.1mm | IP5X | -55% | AA | |
| STC-OX08BC-5300-GMSL2-H120Y1A | 120° | 55° | 1.8 | 5.1mm | IP5X | -65% | AA | |
| Serializer | ||||||||
| Model | Max9295A | |||||||
| I2C Address | 0x80 (8bit address) | |||||||
| Rate | GMSL2 (3G bps) | |||||||
| ISP | ||||||||
| Model | GW5300 | |||||||
| I2C Address | 0xDA (8bit address) | |||||||
| Reset | Controlled by Max9295A MFP0 | |||||||
| Sensor | ||||||||
| Model | OX08B40 | |||||||
| I2C Address | 0x80 (8bit address) | |||||||
| Frame Sync | Controlled by Max9295A MFP8 | |||||||
