USB2.0 camera module

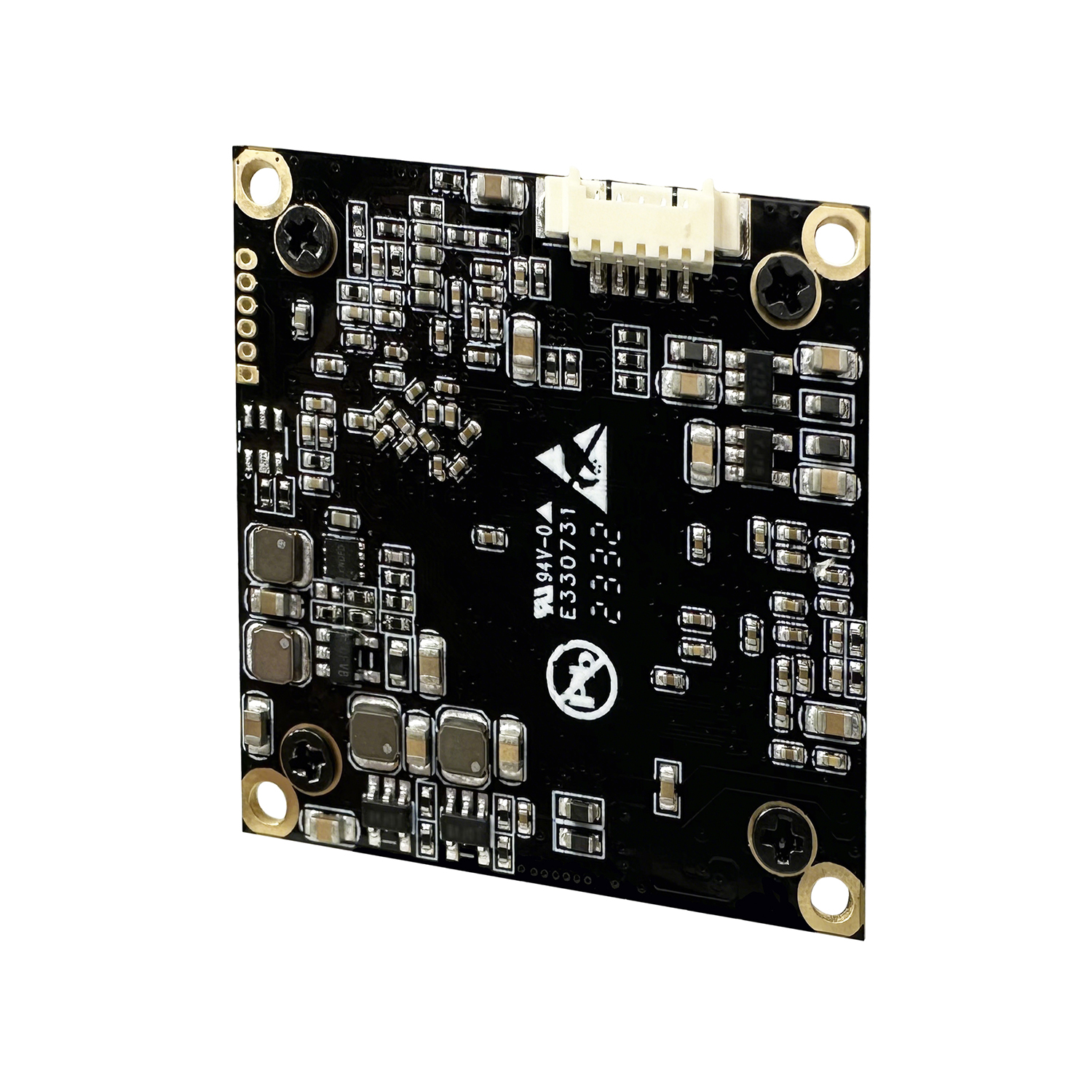

Supertek 50MP Auto Focus High Performance USB2.0 Camera Module Color CMOS Sensor
Supertek 50MP USB2.0 camera module, embedded with the IMX766 CMOS sensor, which can achieve 50MP resolution, it performs all the Auto functions (Auto White Balance, Auto Exposure control), The DSP and sensor settings have been fine tuned to generate best-in-class video in both uncompressed UYVY and Compressed MJPEG.
- 50 Megapixel 8160H x 6120V
- Electronic Rolling shutter
- Phase Detection Auto Focus
- USB2.0 5pin 1.25mm socket
- Fully customizable
Product Information
Supertek 50MP USB2.0 camera module is based on IMX766 CMOS image sensor with Supply Voltage 5V, Frame Rate 30 fps at 4K resolution. The sensor has a 1/1.56″ optical format, which combines with the pixel size of 1 µm, results in the 50 Megapixel 8160H x 6120V resolution. It features USB2.0 high definition interface and phase detection auto focus with fast focus speed.
It is a UVC compliant, plug and play camera module and work with Window, Linux and Mac OS operation systems, which is suitable for Surveillance Cameras, FA Cameras, Photo Booth, Document Scanner etc.
Supertek 50MP Auto Focus High Performance USB2.0 Camera Module Color CMOS Sensor
| Image Sensor | 1/1.56’’ IMX766 | ||
| Pixel Size | 1.0 µm | ||
| Resolution | 50 Megapixel 8160H x 6120V | ||
| Output Format | MJPEG, YUV2 | ||
| FOV | 84.4° | ||
| Lens | EFL: 5.95mm, F/No: 1.88, 6P+IR 650nm | ||
| Focus Type | PDAF | ||
| Shutter Type | Electronic Rolling Shutter | ||
| Protocol & Connection | Plug & Play, UVC compliant | ||
| Output & Power Supply | USB2.0 | ||
| Supported OS | Android, Linux, macOS, etc. | ||
| Controllable Features | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure | ||
| Cable Length | Default 1m USB cable | ||
| Module Size | 38mm x 38mm | ||
| FORMAT | RESOLUTION | FRAME RATE | |
| USB 2.0 | USB 3.0 | ||
| MJPEG | 8160 x 6120 | 5fps | – |
| 4000 x 3000 | 15fps | – | |
| 3840 x 2160 | 30fps | – | |
| 1920 x 1080 | 30fps | – | |
| 1280 x 720 | 30fps | – | |
| YUY2 | 1920 x 1080 (1080P) | 5fps | – |
| 1280 x 720 (720P) | 10fps | – | |
| 640 x 480 (VGA) | 30fps | – | |
