USB2.0 camera module
Supertek 16MP Auto Focus High Performance USB2.0 Camera Module Color CMOS Sensor
Supertek 16MP USB2.0 camera module, embedded by the OV16A10 CMOS sensor, captures 4608×3456 resolution at 15fps, phase detection auto focus ensures rapid and precise focusing, capturing vivid and detailed images with exceptional clarity.
- 16 Megapixel 4608H x 3456V
- 5pin 1.25mm socket
- Electronic Rolling shutter
- Phase Detection Auto Focus (PDAF)
- Fully customizable
Product Information

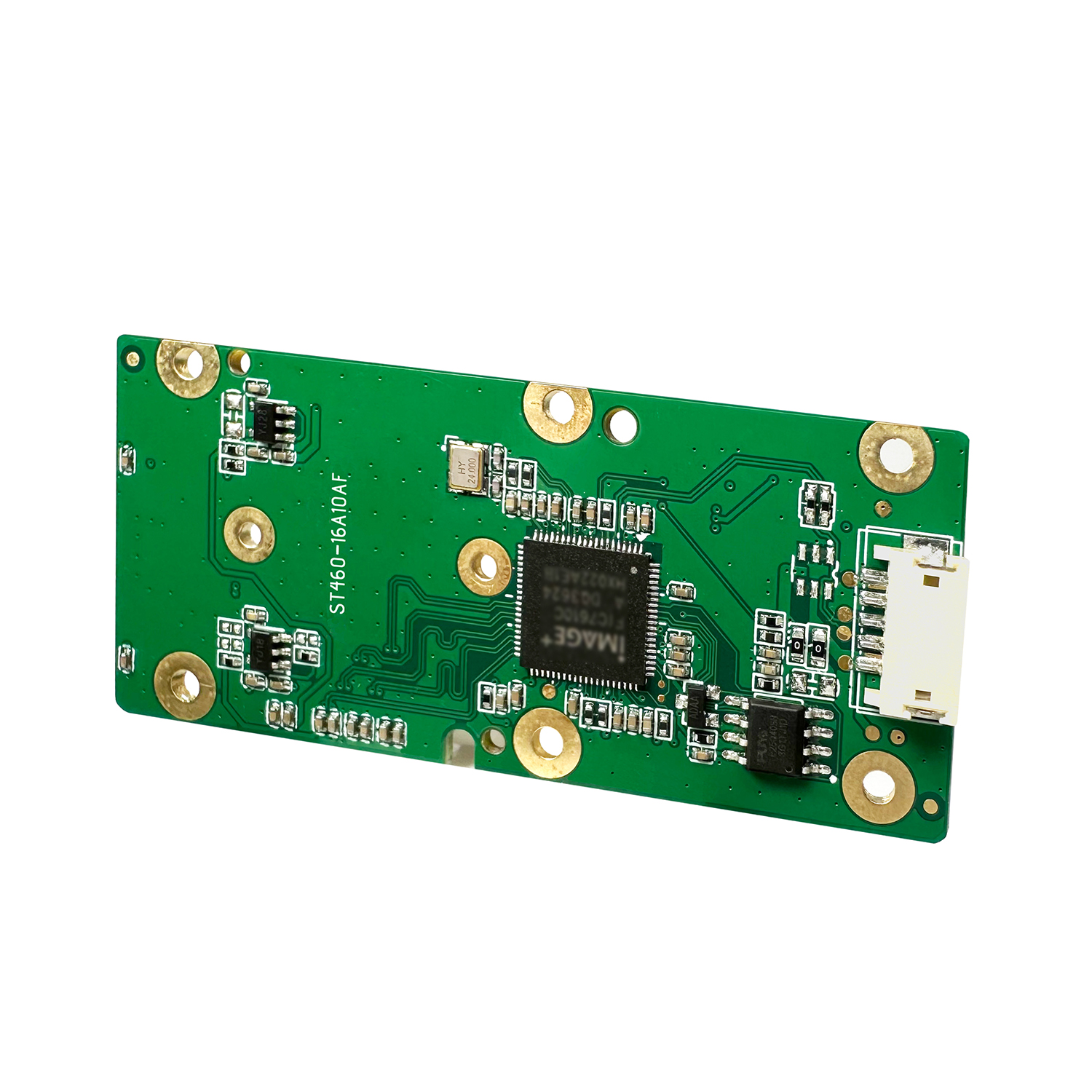

Supertek 16MP USB2.0 camera module is based on OV16A10 CMOS image sensor with Supply Voltage 5V, Frame Rate 30 fps at 4160*3104 resolution. The sensor has a 1/3.06″ optical format, which combined with the pixel size of 1µm, with window cropping mode. 90 degree lens with PDAF can deliver fast streaming and big field of view. It is a UVC compliant, plug and play camera module and work with Window, Linux and Mac OS operation systems, which is suitable for Surveillance cameras, FA cameras, consumer products.
Our off-the shelf dimensions are 62.5*28mm, any other required dimension can be customized.
Supertek 16MP Auto Focus High Performance USB2.0 Camera Module Color CMOS Sensor
| Image Sensor | 1/3.0’’ BF3238CS | ||
| Pixel Size | 2.7 µm | ||
| Resolution | 2.0 Megapixel 1920H x 1080V | ||
| Output Format | MJPEG, YUV2, H.264, H.265 | ||
| FOV | 90° | ||
| Color | Color | ||
| Focus Type | Fixed Focus / Manual Focus | ||
| Shutter Type | Electronic Rolling Shutter | ||
| Audio Input | Support | ||
| Protocol & Connection | Plug & Play, UVC compliant | ||
| Output & Power Supply | USB2.0 | ||
| Power Socket | 5-pin 1.25mm socket | ||
| Supported OS | Windows 7/8/8.1/10/11, Linux, Android | ||
| Controllable Features | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure | ||
| Cable Length | Default 1m USB cable | ||
| Module Size | 38mm x 38mm | ||
| Operating Temperature | -20º ~ +70º | ||
| Storage Temperature | -40º ~ +85º | ||
| Humidity | 80 ~ 85% | ||
| FORMAT | RESOLUTION | FRAME RATE | |
| USB 2.0 | USB 3.0 | ||
| MJPEG | 1920 x 1080 (1080P) | 30fps | – |
| 1280 x 720 (720P) | 30fps | – | |
| 640 x 480 (VGA) | 30fps | – | |
| YUY2 | 1920 x 1080 (1080P) | 5fps | – |
| 1280 x 720 (720P) | 5fps | – | |
| 640 x 480 (VGA) | 30fps | – | |
| H.264 | 1920 x 1080 (1080P) | 30fps | – |
| 1280 x 720 (720P) | 30fps | – | |
| 640 x 480 (VGA) | 30fps | – | |
| H.265 | 1920 x 1080 (1080P) | 30fps | – |
| 1280 x 720 (720P) | 30fps | – | |
| 640 x 480 (VGA) | 30fps | – | |
