USB3.0 camera module

8MP USB3.0 Camera Module

  • 8MP resolution with Auto/Fixed focus for your choice
  • USB 2.0/3.0 compliant, plug and play device
  • Electronic Rolling Shutter
  • Fully customizable
Application : Cellular Phone Cameras, Notebook and desktop PC cameras,Toys, Digital still cameras and camcorders,Video telephony and conferencing equipment,Security systems,Bar code reader

Product Information

8MP Usb3.0 Camera Module

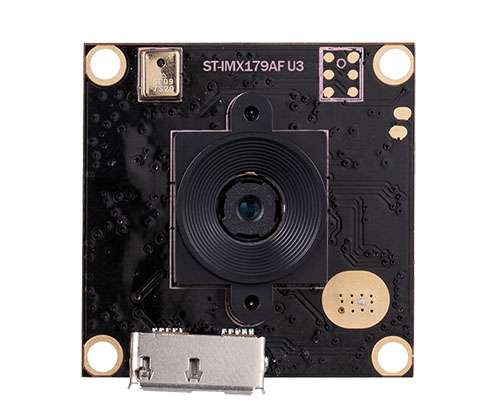

The Supertek ST-IMX179FF-USB3.0 camera module adopts a Sony IMX179 image sensor, featuring a 1/3.2 inch CMOS image sensor with an effective pixel array of 3264(H) x 2448(V), USB3.0 high speed, autofocus and Fixed focus available, UVC compliant, plug and play, immersion gold process PCB, high quality and stable image output, fully supports customized board size and have various options for Lens. Application: Traffic Industrial, 3D imaging, video conference, artificial intelligence, embedded vision, access control, surveillance…

8MP USB3.0 Camera Module - Specification

Image Sensor Pixel Size1/3.2″ CMOS IMX179 1.4um(H) x 1.4um(V)
Resolution8.0 Megapixel 3264H x 2448V
Output FormatMJPEG, YUV2
Focus type75 degree
Shutter typeFEL: 3.3mm F/NO :2.2mm Auto focus
Audio InputElectronic Rolling shutter
IlluminationSupport Digital mic
Optional Function0.1 Lux
Output & Power SupplyImage Capture by External SW
Power SocketUSB3.0, Compatible with USB2.0 Micro connector or 9 pin soldering type
Supported OSWin XP/Vista/Win7/Win8/Win10 MAC OS X EI Capitan 10.11.4, Linux /Android, Wince with UVC
